Introduction to Git and GitLab: All in One View

Content from Why Version Control?

Last updated on 2025-07-01 | Edit this page

Overview

Questions

What problem does version control solve?
When should I use Git?

Objectives

Describe what a version control system (VCS) does.
List at least three reasons why using Git can improve your workflow.
Outline the key components of a Git repository (working directory, staging area, commit history).

Have you ever found yourself with a folder full of files like this?

report.docx
report_final.docx
report_final_v2.docx
report_final_for_real_this_time.docx
report_final_sent_to_boss.docx

Or maybe you’ve been working on a file and thought, “I wish I could go back to the version I had yesterday before I deleted that paragraph.”

This is the kind of problem that version control is designed to solve.

Introduction

Version control is like a digital lab notebook: it keeps a dated, permanent record of every meaningful change you make to your project files. In this episode we introduce Git, the distributed version control system we will use throughout the lesson.

A VCS helps you:

keep files synchronised across multiple machines,
recover previous states of your project (including deleted files!),
discover who changed what, when, and why,
collaborate safely with colleagues, and
showcase the evolution of your work.

In this workshop we will explore:

tracking changes locally,
sharing work using GitLab, a web-based platform for hosting your Git repositories and collaborating with others,
collaborating via pushes, pulls, and merge requests, and
branching to develop new ideas without breaking the main line of development.

The Git Workflow

Diagram showing working directory, staging area, and repository.

The diagram above summarises the flow of information in a Git repository.

Here is what these terms mean:

Working Directory: The folder on your computer where your project files live. This is where you do all your work: creating, editing, and deleting files.
Staging Area (or Index): A “waiting room” for your changes. You select which changes from your working directory you want to save, and you add them to the staging area. This allows you to group related changes into a single, meaningful snapshot.
Repository (or Commit History): The permanent, dated record of all the snapshots you have saved. Once a change is committed from the staging area to the repository, it’s saved in your project’s history.

Challenge

1: Why bother?

Which of the following is not a typical reason to use a version control system?

A. Keeping files synchronised between two laptops
B. Tracking the history of code changes
C. Encrypting files to keep them secret
D. Collaborating with colleagues on a shared project

Show me the solution

C. Encrypting files. While encryption is possible, it is not the primary purpose of a version control system.

Key Points

Version control records every meaningful change to your project.
Git’s three-step workflow is: edit → stage → commit.
Version control facilitates collaboration, provenance, and backup.

Content from Configuring Git

Last updated on 2025-07-01 | Edit this page

Overview

Questions

How does Git know who I am?
What is the difference between local, global, and system configuration?
Which Git settings are helpful to change right away?

Objectives

Explain the purpose of the git config command.
Distinguish the three configuration levels used by Git (--system, --global, --local).
Set a username, email address, colour output, default editor, and pull behaviour.
View and edit the ~/.gitconfig file safely.

Introduction

Before we can record changes, Git needs to know who is making them. It also allows you to tailor its behaviour. All of this is handled by the git config command, which writes preferences to one of three configuration files (listed from lowest to highest priority):

Level	File	Scope
System	`/etc/gitconfig`	Every user on the machine
Global	`~/.gitconfig`	All repositories for you
Local	`.git/config`	Single repository only

When Git looks up a setting it starts locally and works upward, so local settings override global, which override system.

1. Identify yourself

The first thing you should do is configure Git so that it understands who you are. The git config command allows you to set Git configuration values that can help you create a customized Git workflow.

To set your email and username, type

BASH

$ git config --global user.name "Your Name"
$ git config --global user.email "you@example.com"

These two lines create (or update) entries in ~/.gitconfig so every commit you make will be tagged with the correct author information.

Setting Up Your Identity: user.name and user.email Before you make your first commit, Git needs to know who you are. Every commit you make is tagged with an author, which includes a name and an email address. This is how Git tracks who made what changes in the project’s history.

You’ll set these globally so Git remembers them for all your future projects:

Bash

$ git config –global user.name “Your Name” $ git config –global user.email “you@example.com” Replace “Your Name” with your actual name and “you@example.com” with your email address. Using the –global flag ensures these settings apply to every Git repository on your computer, so you won’t have to set them up for each new project.

Callout

Think Before You Share: Email Addresses in Git While Git requires an email address for your commits, be mindful about the address you use. Your commit email address becomes part of the public history of any repository you push to a public platform (like GitHub or GitLab).

Here’s why this matters and what you can do:

Privacy Concerns: A public email address can be scraped by bots, leading to more spam or unwanted solicitations. Security Risks: In some rare cases, a public email could potentially be used for targeted attacks if combined with other publicly available information. What are your options?

Use a dedicated “no-reply” email provided by your Git hosting service: GitHub, for example, offers a “noreply” email address you can use. This keeps your personal email private while still uniquely identifying your commits. Check your account settings on platforms like GitHub or GitLab for this option. Use a separate email address: You could use an email address specifically for Git commits that you don’t use for other personal or critical communications. Keep private repositories private: If you’re working on a private project, your email address is only visible to those with access to the repository. Always consider the visibility of your repository and choose an email strategy that aligns with your privacy preferences.

Challenge 1: Check your work

Run git config --global --list to confirm that your name and email were saved.
Where would the same information be stored if you had used --local instead?

Show me the solution

Your terminal should show lines similar to

user.name=Your Name
user.email=you@example.com

With the --local flag the values are written to .git/config inside the current repository, leaving other projects unaffected.

2. Make output readable

BASH

$ git config --global color.ui auto

With colour enabled, Git highlights additions (green), deletions (red), and branch names, making the status information easier to parse.

Example Configuration for Red-Green Colorblindness (Deuteranopia/Protanopia)

For someone with red-green colorblindness, avoiding pure red and green for critical distinctions is key. Here’s an example configuration that uses blues, purples, and yellows instead:

BASH

# General UI color (already set to auto)
git config --global color.ui auto

# Diff colors
git config --global color.diff.old "magenta bold"  # Changed from red
git config --global color.diff.new "cyan bold"    # Changed from green
git config --global color.diff.meta "blue"
git config --global color.diff.frag "yellow"

# Status colors
git config --global color.status.added "cyan bold"      # Changed from green
git config --global color.status.changed "yellow bold"  # Often orange/yellow by default, keep it distinct
git config --global color.status.untracked "magenta"    # Changed from red

# Branch colors
git config --global color.branch.current "yellow bold"
git config --global color.branch.local "cyan"
git config --global color.branch.remote "magenta"

3. Choose your editor

BASH

$ git config --global core.editor "nano -w"

Git drops you into an editor for multi‑line commit messages, merge conflict resolutions, and interactive rebases. Pick an editor you are comfortable with (common choices are nano, code –wait, or notepad.exe on Windows).

4. Tame autocorrect and pulls

BASH

$ git config --global help.autocorrect 1   # Suggest closest command after 1/10 second
$ git config --global pull.rebase false    # Default to merge when running `git pull`

Autocorrect spares you from typos, while the pull setting aligns behaviour with the rest of this workshop (merging instead of rebasing).

Challenge 2: Inspect your `.gitconfig`

Use cat ~/.gitconfig (or open the file in your editor) and locate the lines you just added. Which section header ([user], [core], etc.) does each belong to?

Show me the solution

[user] contains name and email.
[core] contains editor and options such as autocorrect.
[color] stores ui = auto.

5. Override settings per‑project

Occasionally a project needs a different identity (e.g. when contributing to an open‑source repository on behalf of a separate organisation). Add local overrides inside the project directory:

BASH

$ git config --local user.name "Open Source Bot"
$ git config --local user.email "bot@example.org"

These values live in .git/config and apply only to that repository.

Challenge 3: Predict the result

You have the following configuration hierarchy:

System: user.email = root@machine
Global: none set
Local: user.email = user@project

What email address will Git record when you commit inside the project directory? What happens if you commit in a different repository?

Show me the solution

Inside the project directory Git will record user@project because local overrides everything else.
In any other repository Git falls back to the system‑wide value root@machine.

Key commands reference

BASH

# View all settings (with their files)
$ git config --list --show-origin

# Set values
$ git config --global user.name "Your Name"
$ git config --local  color.ui auto

# Edit configuration interactively (opens editor)
$ git config --global --edit

Key Points

git config writes and reads Git’s preference files.
Three levels exist: system, global, local; the closest level wins.
Setting your name and email globally ensures commits are attributed correctly.
Colour, editor, and autocorrect options improve usability.

Content from Recording Changes Locally

Last updated on 2025-07-01 | Edit this page

Overview

Questions

How do I create a new Git repository for my project?
How do I check which files have been modified?
How do I record a snapshot of my work?
How can I review what has changed between versions?

Objectives

Initialise a repository with git init.
Explain the roles of the working directory, staging area, and repository.
Track new or modified files with git add and record them with git commit.
Use git status to see the state of the working directory and staging area.
Compare changes with git diff and inspect history with git log.
Restore a file to an earlier state with git restore (or git checkout -- for older Git versions).

Introduction

With Git configured, we can start tracking changes. Think of Git as a camera: every time you take a commit you capture a snapshot of the files that are staged. Much like arranging subjects before pressing the shutter, you choose what to record with git add.

Three locations matter (see diagram below):

Working directory – files you edit in your editor/IDE.
Staging area – a holding zone for the next snapshot.
Repository – the permanent, time‑stamped history.

Flow diagram from working directory to staging area to repository.

1. Create a repository

A repository, or repo, is a fundamental element of Git. It’s a space where project files live, allowing for version control and collaboration.

You can think of a repository as a project folder that tracks changes, stores history, and lets multiple people work together seamlessly.

We are going to create a folder for our project MyProject which will turn into a git repository.

BASH

mkdir MyProject

You can go into MyProject by running

BASH

$ mkdir MyProject
$ cd `MyProject`

In its current state the directory, MyProject is not a Git repository.

If you want this folder to be a Git repository so that you can track all changes you make, type git init command.

BASH

$ git init            # creates .git directory

When you run the git init command in an ordinary folder, it allows you to transform that folder into a trackable git repository where you can use Git commands.

git init creates a hidden .git folder that stores all future history.

Challenge 1: First contact

Run git status immediately after git init. What output do you see and why?

Show me the solution

Git reports

On branch main (or master)

No commits yet
nothing to commit (create/copy files and use "git add" to track)

because we have not created any files or commits; the repository is empty.

2. Add a README file

A README file in a Git repository provides essential information about the project, including its purpose, usage instructions, how to get started, where to find help, and details on contributors. It serves as an introductory guide for visitors, helping them understand and utilize the project effectively

Callout

Markdown Files

README files are typically named README.md. The .md extension indicates that the file is written in Markdown, a lightweight markup language that allows you to add formatting (like headings, bold text, lists, and code blocks) using plain text.

When you view a repository on platforms like GitHub, GitLab, or Bitbucket, they automatically detect README.md (or similar filenames like README.txt, README) in the root directory. These platforms then render the Markdown content into beautifully formatted HTML, making the project’s introduction easily readable directly in your web browser without needing to open the file in a text editor. This automatic rendering is a key reason Markdown is so popular for repository documentation.

Let’s create a new file by running touch README.md then run git status again. Now you should see that you have an untracked file README.md.

BASH

$ echo "# My eddie Python project" > README.md
$ git status          # untracked file appears in red

OUTPUT

On branch main

No commits yet

Untracked files:
  (use "git add <file>..." to include in what will be committed)
    README.md

nothing added to commit but untracked files present (use "git add" to track)

An untracked file is one that has not been added to the staging area. To add files to the staging area, you can use the git add command.

Git add

There are quite a few ways to use this command. For example, you can use git add . to add all files to the staging area from the working directory or use git add filename to add a specific file to the staging area.

BASH

$ git add README.md   # stage the file

If you run git status again, this will show you that README.md is in the staging area

BASH

$ git status          # file appears in green (staged)

OUTPUT

On branch main

No commits yet

Changes to be committed:
  (use "git rm --cached <file>..." to unstage)
    new file:   README.md

When files are added to the staging area, that means they are in safe keeping before you commit them. Think of using the Git add command as telling Git, “Please keep track of this file in its current state.”

Staging tells Git which changes, Changes to be committed, belong to the next snapshot.

If you make additional changes to the tracked files, you’ll need to use the git add command again for Git to keep track of them.

3. Commit the snapshot

To add snapshot to repository use the git commit command. For each commit you will need to add a message using the -m option.

Git messages

Limit the Subject Line: Keep the subject or summary line to 50 characters or fewer. This ensures it’s easily readable in various Git tools.
Use the Imperative Mood: Frame your commit message as a command or action, e.g., “Fix” rather than “Fixed” or “Fixes.”
Avoid Vague Messages: Instead of writing “Update code” or “Fix bug”, specify what you did, such as “Add error handling for login process.”

Let’s run git commit -m “initial commit” to see what happens.

BASH

$ git commit -m "initial commit"

OUTPUT

[main (root-commit) 72041c0] Add README with project title
 1 file changed, 1 insertion(+)
 create mode 100644 README.md

Every commit receives a unique 40‑character hash (displayed here as 72041c0 for brevity).

You’ll see that you have “1 file changed, 1 insertion(+)” because you just added one new files, and the files has one line of code.

Now that your changes are committed, your working directory should be clean. You can verify this by running git status again:

BASH

git status

This output means there are no new changes to track or commit since your last snapshot. Your project’s state is now safely recorded in your Git history!

OUTPUT

On branch main
nothing to commit, working tree clean

That’s how you use the git add and git commit commands together! Well done tracking changes and storing your new work.

Git Log: Tracing Your Project’s History

The git log command is your window into the history of your Git repository. After you’ve made and committed changes (like we did with the README.md file), your git status shows a clean working tree because those changes are now safely recorded. git log then lets you see a chronological list of all those recorded commits, starting from the most recent one and working backward. Each commit represents a snapshot of your project at a specific point in time, along with who made the change and why.

BASH

git log

OUTPUT


commit f00b5b49b39884a9bf978bc272c82d862976abcb (HEAD -> main)

Author: firstname surname <emailaddress@ed.ac.uk>

Date:   Tue Sep 24 10:06:58 2024 +0100

initial commit

Challenge 2: Where is my commit?

Use git log --oneline to view the history. How many commits appear and what information is shown?

Show me the solution

One commit appears:

72041c0 (HEAD -> main) initial commit

We see the abbreviated hash, the branch name, and the commit message.

4. Modifying a file

Edit README.md

BASH

nano README.md

add a Run Script section

# My eddie Python project

To run Python on eddie need to run:
    module load igmm/apps/python/3.7

git status

BASH

$ git status          # modified file in red

OUTPUT

On branch main
Changes not staged for commit:
  (use "git add <file>..." to update what will be committed)
  (use "git restore <file>..." to discard changes in working directory)
    modified:   README.md

Viewing changes

We can you the command git diff to view our change.

BASH

$ git diff README.md  # view changes

OUTPUT

diff --git a/README.md b/README.md
index a4c6c69..603f621 100644
--- a/README.md
+++ b/README.md
@@ -1 +1,4 @@
 # My eddie Python project
+
+To run Python on eddie need to run:
+    module load igmm/apps/python/3.7

What Each Part Means

`diff --git a/README.md b/README.md`

This is the file being changed: README.md
a/README.md = the old version
b/README.md = the new version
This line starts the diff block for that file.

`index a4c6c69..603f621 100644`

a4c6c69 = commit hash of the file before the change
603f621 = commit hash of the file after the change
100644 = file mode (normal non-executable file)

➖ `--- a/README.md`

➕ `+++ b/README.md`

Shows what version is being removed (---) and added (+++)
Still refers to the same file (README.md), before and after

`@@ -1 +1,4 @@`

This is a “hunk header” showing line number context
-1 = from line 1 of the old file
+1,4 = starting at line 1 of the new file, and it now spans 4 lines

Content Change Section

DIFF

 # My eddie Python project
+
+To run Python on eddie need to run:
+    module load igmm/apps/python/3.7

Symbol	Meaning	Explanation
	(no symbol)	This line was already there
`+`	Line was added	These 3 new lines were inserted below the original first line

Stage and commit the update:

Once we are happy with the changes we can stage the changes and then commit into the git repository.

BASH

$ git add README.md
$ git commit -m "Describe how to run analysis script"

OUTPUT

[main 370eb9d] Describe how to run analysis script
  1 file changed, 3 insertions(+)

5. Inspecting differences between commits

BASH

$ git diff HEAD~1 README.md   # compare current commit to one before

HEAD is a symbolic name for the current commit; HEAD~1 means one commit ago.

OUTPUT

diff --git a/README.md b/README.md
index a4c6c69..603f621 100644
--- a/README.md
+++ b/README.md
@@ -1 +1,4 @@
 # My eddie Python project
+
+To run Python on eddie need to run:
+    module load igmm/apps/python/3.7

Challenge 3: Predict the diff

Suppose the original README contained only a title. After adding a section called Data, what colour will the new lines appear in the diff output and why?

Show me the solution

They will be green with a + prefix because new lines are additions relative to the previous snapshot.

6. Undoing a change in the working directory

If you accidently stage a file you can discard unstaged edits using git restore:

BASH

$ git restore README.md   # newer Git (>=2.23)
# or
$ git checkout -- README.md  # older Git versions

Be cautious: this removes changes permanently unless they were staged or committed.

7. Adding directories and data

Git tracks files, not empty directories. To include a folder you must add at least one file inside it (often an empty .gitkeep):

BASH

$ mkdir Src
$ touch Src/.gitkeep
$ git add Src/.gitkeep

Let download a file into a Data directory

BASH

$ mkdir Data
$ curl -L -o Data/data.csv https://figshare.com/ndownloader/files/14632895

We can now add ito staging area and commit to repository.

BASH

$ git add Data/data.csv # Comment on when to commit data
$ git commit -m "Add example dataset"

Challenge 4: Multiple file workflow

Create a simple Python script Src/hello.py that prints “Hello World!”. Add and commit it. Then modify the script to read the CSV file added above and print the number of rows. Use git diff before committing to verify the change.

PYTHON

        #!/usr/bin/env python
        print("Hello World!")

Show me the solution

Create the file:

PYTHON

    #!/usr/bin/env python
    print("Hello World!")

BASH

$ git add Src/hello.py
$ git commit -m "Add hello world script"

Challenge 4: Multiple file workflow (continued)

Edit the script, stage, inspect, commit:

PYTHON

#!/usr/bin/env python

# load pandas library
import pandas as pd

# Read the data
variants =  pd.read_csv("Data/data.csv")

# Check we have the data
print(variants)

Show me the solution

SH

``` python
#!/usr/bin/env python

# load pandas library
import pandas as pd

# Read the data
variants =  pd.read_csv("Data/data.csv")

# Check we have the data
print(variants)
```

``` bash
$ git diff Src/hello.py   # shows additions
$ git add Src/hello.py
$ git commit -m "Read CSV and report row count"
```

8. Viewing the complete history

BASH

$ git log

Key Points

git init turns a directory into a repository by creating .git.
git status gives you a report on your git repository.
Stage files with git add; record them permanently with git commit -m.
Use git diff to inspect unstaged or staged changes.
git log reveals the history; hashes uniquely identify commits.
Empty directories are not tracked—add a file such as .gitkeep.
git restore returns a file to a known state.

Content from Working with Remote Repositories

Last updated on 2025-07-01 | Edit this page

Overview

Questions

What is a remote in Git?
How do I connect my local repository to one hosted on GitLab?
How do I share my work (push) and incorporate others’ work (pull)?
What should I do if a push is rejected because my branch is behind?

Objectives

Define the term remote and list at least two common hosting services.
Create a new remote connection with git remote add and publish code with git push -u origin main.
Retrieve updates with git pull and explain the difference between git pull and git fetch.
Resolve a simple non‑fast‑forward push rejection by pulling before pushing.

Introduction

A Git remote is a shorthand name for a version of your project hosted elsewhere, typically on a server like GitLab or GitHub. Remotes allow you to share your history and collaborate with others.

University of Edinburgh GitLab Repository

The University of Edinburgh provides a Git Repository hosting service using GitLab more information here

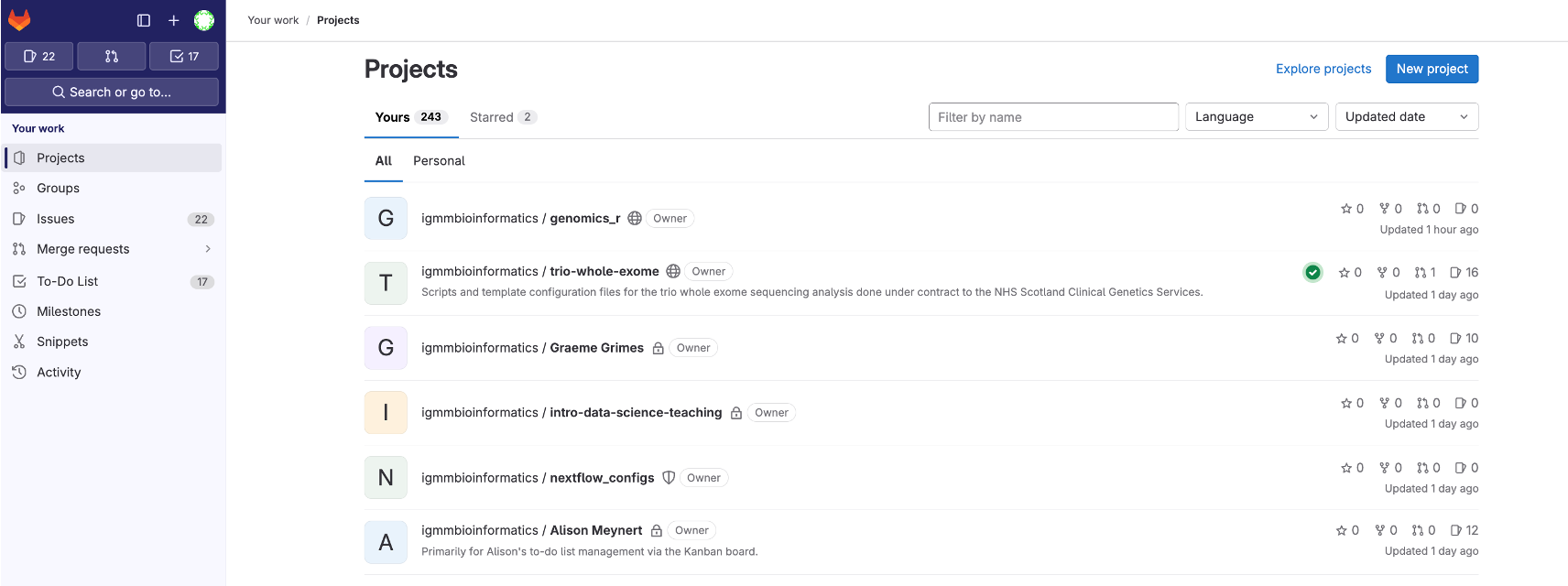

Log into GitLab, https://git.ecdf.ed.ac.uk, using your University of Edinburgh credentials.

Create New Project

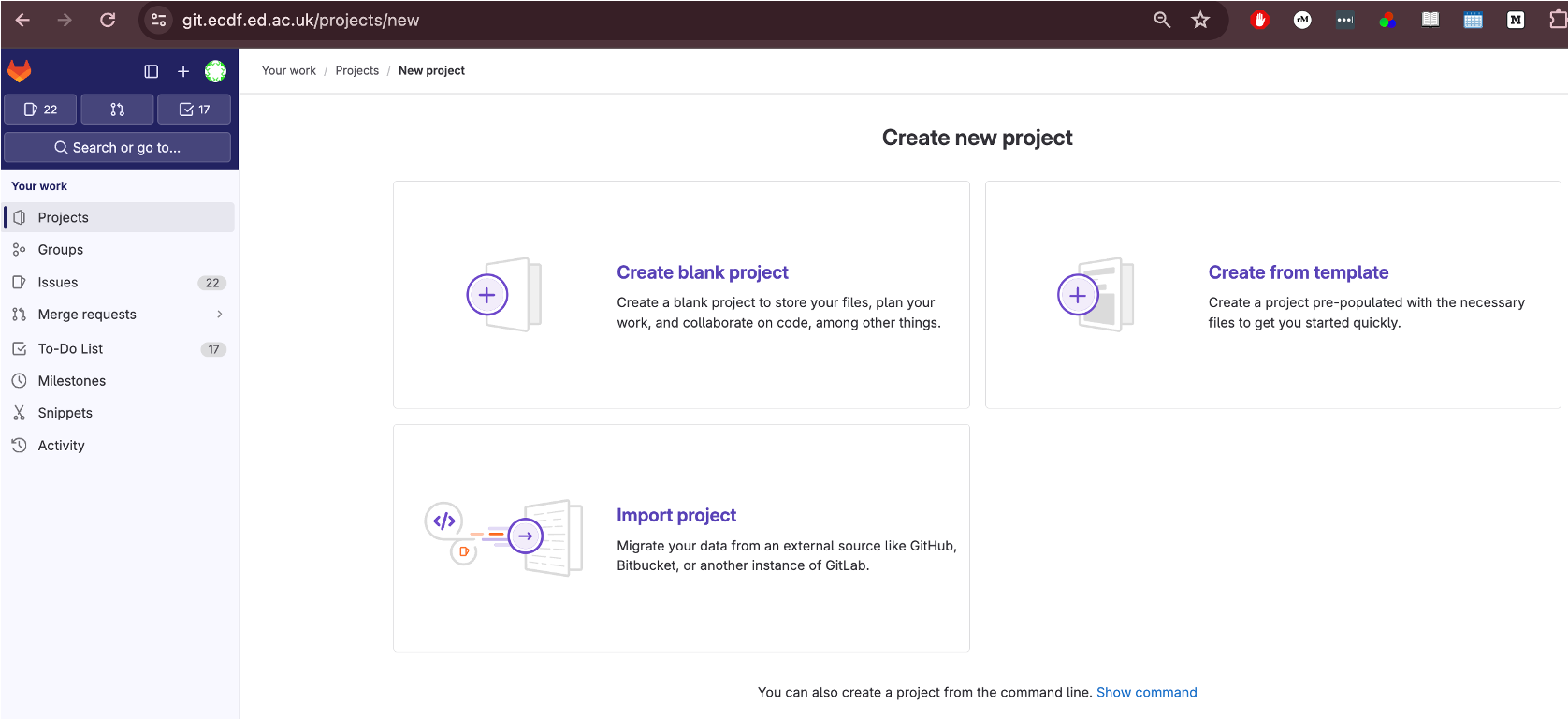

Select New project

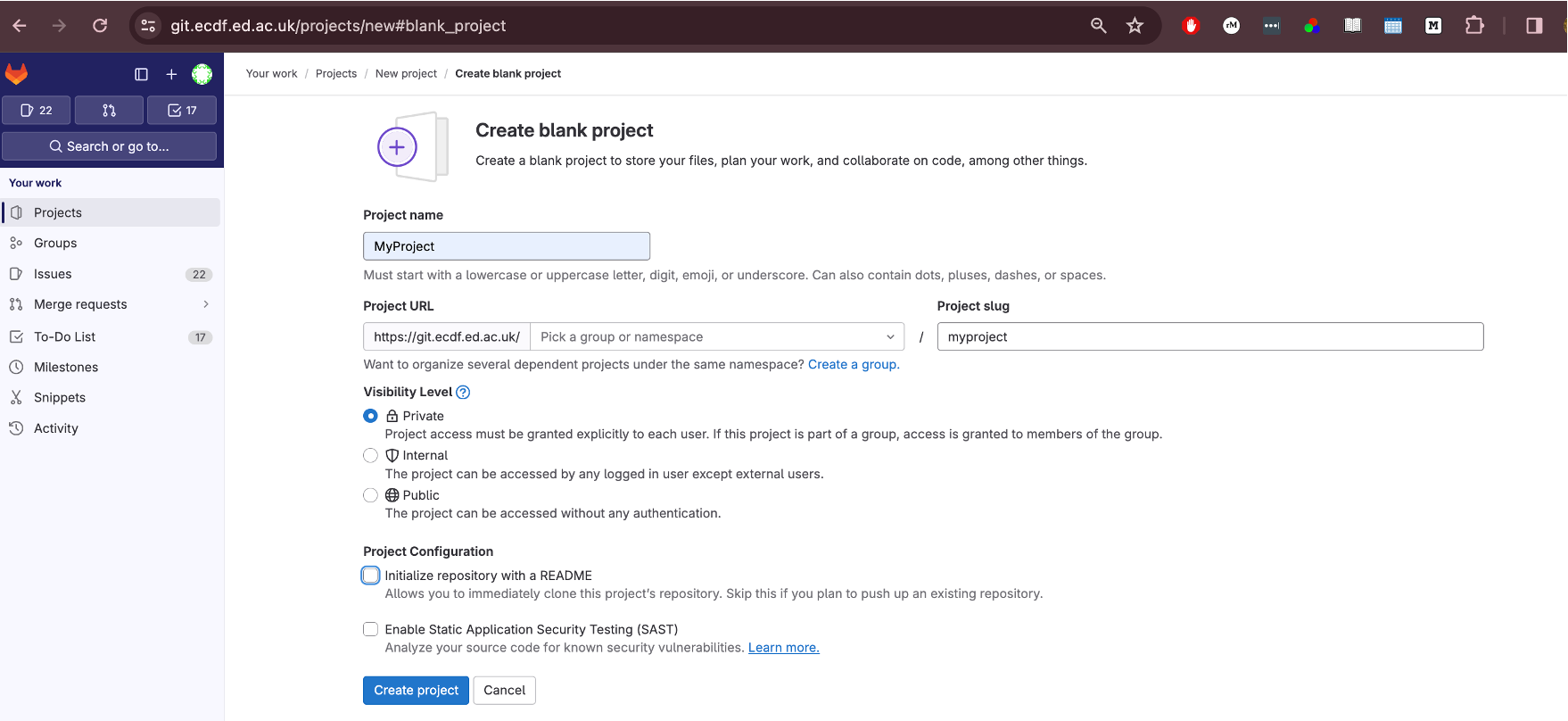

Select Create blank project
Add a Project Name MyProject
Un-tick Project Configuration->Initialize with A README
Click Create Project

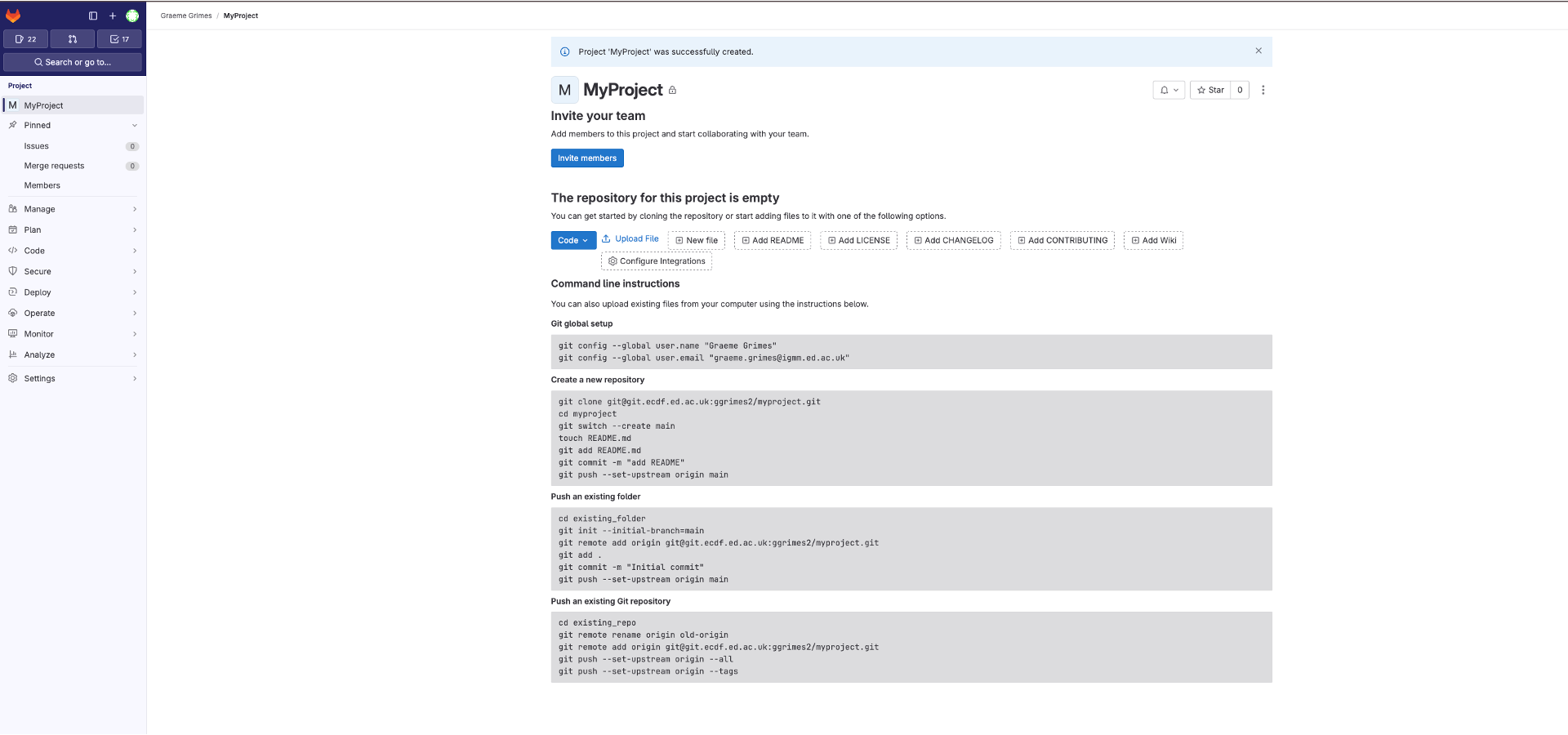

6.This will create an Empty Repository, with details on how to link your existing git repository.

GitLab security

To enable password less access to your remote, you can add your public SSH Key from Eddie to the remote repository.

Generating a new SSH key

You can generate a new SSH key on your local machine. After you generate the key, you can add the public key to your account on GitLab to enable authentication for Git operations over SSH.

The University guide can be found here

Example below

BASH

[username@login02(eddie) ~]$ ssh-keygen -o -t ed25519
Generating public/private ed25519 key pair.
Enter file in which to save the key (/home/username/.ssh/id_ed25519):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /home/username/.ssh/id_ed25519.
Your public key has been saved in /home/username/.ssh/id_ed25519.pub.
The key fingerprint is:
SHA256:3t/tZzvbviR5Xs1YYYQeaGtI2n02W(and some more characters)hxxt (email address of the user)
The key's randomart image is:
+--[ED25519 256]--+
|  oo..   .  o... |
| o. o o ...o.+.  |
|  .+ + o+ +o+ .o |
| E  o o. o +.B. .|
|        S . = o .|
|       . . .  .+.|
|        . .  o.o+|
|           . .=o=|
|            . .O@|
+----[SHA256]-----+

This will generate two files: the private key file (in this example /home/username/.ssh/id_ed25519) and the public key file (/home/username/.ssh/id_ed25519.pub) - it is vitally important that you never share your private key

You can now add the contents of the public key file id_ed25519.pub to the GitLab.

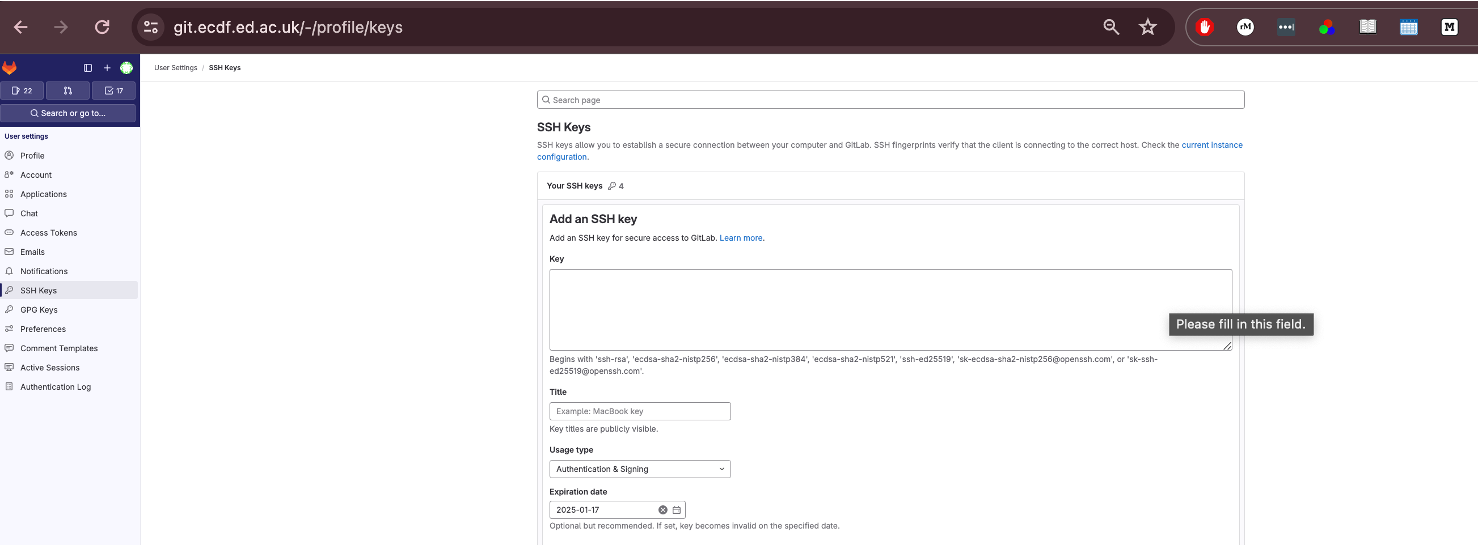

Go to https://git.ecdf.ed.ac.uk/-/user_settings/ssh_keys then click add new key

Git Remote on Eddie

Here we will link our existing repository on Eddie with the remote on GitLab, using the git remote command.

BASH

$ git remote --help     # on eddie

To add out remote we use git remote add using the information on the blank GitLab Repository page.

BASH

$ git remote add origin git@git.ecdf.ed.ac.uk:ggrimes2/myproject.git

We can now use the git remote -v command to see it has been linked.

BASH

git remote -v

Callout

Origin

The name “origin” for a git remote is not inherently special to Git’s internal mechanics, but it is a widely accepted convention and has a few notable points:

Default Name: When you clone a repository from a remote source using git clone , Git automatically names the remote repository “origin” by default. It’s just a convention that Git follows.

Widely Recognized: Because of this default behavior, many developers expect “origin” to refer to the primary or original repository from which the project was cloned. This shared understanding can help with clarity when collaborating.

Can be Renamed or Removed: There’s nothing binding about the name “origin.” You can rename it or even have multiple remotes with different names to track different repositories or branches.

In essence, “origin” is a convention, and while it’s not mandatory to use, adhering to such conventions can make collaborative work smoother and more intuitive.

When you clone a repository you automatically get one remote called origin. If you start with a local repo (git init) you can add one later:

Syncing Repository

Now we have created an empty repository on the GitLab Server we can send the local changes to the remote using git push. The command git push tells Git, “Thanks for tracking these file changes. Now I want to upload these changes into the main project file.”

When you push your changes, you are essentially updating the remote repository with commits that have been made in your local repository

To do this, use the command

BASH

# on eddie
$ git push origin main
#or shorthand
$ git push

In your case, you can type git push origin main where “origin” refers to the “remote repository” and “main” refers to the branch you want to upload.

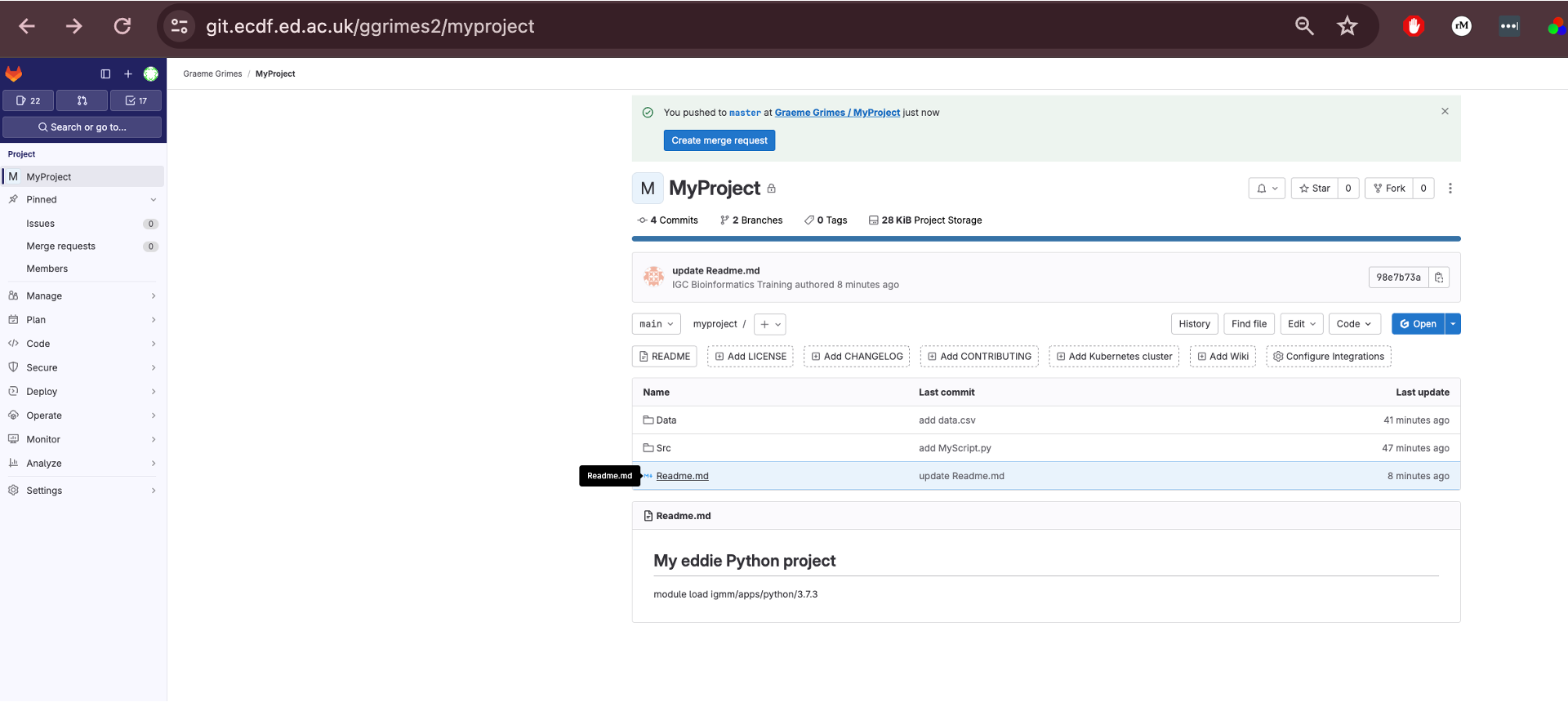

If you go back to the repository on GitLab and refresh the page you will the repository has been synced with the local version.

1. Syncing Changes

Make a change to the Readme.md file

BASH

$ nano Readme.md

Add this text, or something else, to the bottom of the Readme.md file

## Data
The [data](https://figshare.com/articles/dataset/Data_Carpentry_Genomics_beta_2_0/7726454?file=14632895) is made available under an [Creative Commons license](https://creativecommons.org/licenses/by/3.0/).

Now we will, add, commit to our local repository and push changes to our remote repository.

BASH

$ git status
$ git add Readme.md
$ git commit –m "Add Eddie and Data subsections"
$ git status
$ git push -u origin main # run once
$ git push # use this after

3. Pulling changes

Suppose a collaborator adds commits to our remote repository. Now we need to get these changes locally. We can use the command git pull to keep your local repository up to date with the remote repository.

BASH

$ git pull

If there is no divergence, Git performs a fast‑forward merge. Otherwise you may need to resolve conflicts before completing the merge.

4. Handling a rejected push

You may see:

! [rejected]   main -> main (non-fast-forward)

This means your local branch is behind the remote. Fix it by pulling, resolving any conflicts, then pushing again:

BASH

$ git pull --rebase   # preferred: reapply your work on top of remote
# ...resolve conflicts if prompted...
$ git push

Challenge 1: Check your remote

Run git remote -v.

Show me the solution

The output lists fetch and push URLs for origin.

Challenge 1: Check your remote (continued)

Challenge 2: Upstream tracking

After cloning, what command shows which remote branch your local main is tracking?

Show me the solution

git branch -vv lists local branches with their upstream counterparts.

Challenge 1: Check your remote (continued)

Challenge 2: Upstream tracking (continued)

Challenge 3: Predict the outcome

You run git fetch origin followed by git log --oneline main..origin/main. What will appear and why?

Show me the solution

The log shows commits that exist in origin/main but not in your local main; the two‑dot syntax lists commits reachable from the second reference and not the first.

Challenge 1: Check your remote (continued)

Challenge 2: Upstream tracking (continued)

Challenge 3: Predict the outcome (continued)

Challenge 4: Clone vs init

List one advantage and one disadvantage of git clone compared to creating a repo with git init and then adding a remote.

Show me the solution

Advantage: git clone copies all history and configures the remote automatically, saving time.

Disadvantage: You cannot easily choose which files or branches to include during the initial copy (though --depth and --branch options help).

Challenge 1: Check your remote (continued)

Challenge 2: Upstream tracking (continued)

Challenge 3: Predict the outcome (continued)

Summary diagram

Add comprehensive remote workflow diagram.

Key Points

A remote is a named reference to a repository hosted elsewhere.
git clone URL copies a remote repository and sets up origin.
Publish an existing repo with git remote add followed by git push -u origin <branch>.
git pull equals git fetch + git merge; use --rebase to avoid unnecessary merges.
A push may be rejected if your branch is behind; pull (or fetch & merge) then push again.

Content from Using Git with a Graphical User Interface RStudio

Last updated on 2025-07-01 | Edit this page

Overview

Questions

What is a Git GUI and how does it relate to the command line?
How can I use Git in RStudio on the University of Edinburgh’s Noteable service?

Objectives

Define what a Git GUI is and why you might use one.
Use RStudio to clone a repository via its Git integration.
Configure Git with your name and email address.
Stage, commit, and push changes using RStudio’s GUI.
Verify that your changes appear on the remote repository.

1. What is a Git GUI?

A Git GUI (Graphical User Interface) provides a visual alternative to the command-line interface. Instead of typing commands like git commit, users can interact with buttons, menus, and panels. GUIs are helpful for:

Beginners who aren’t yet comfortable with terminal commands
Visualising the commit history and file changes
Handling merge conflicts more easily

RStudio includes built-in Git support, making it easy to integrate version control into your analysis projects.

2. RStudio and the Noteable Environment

We will be using RStudio Server via the University of Edinburgh’s Noteable platform. This cloud-based RStudio environment supports Git integration and is ideal for version-controlled reproducible research.

3. Configure Git in Noteable

The first time you use Git in a new environment (like Noteable), you need to tell Git who you are:

BASH

$ git config --global user.name "Your Name"
$ git config --global user.email "you@example.com"

You can run this in the Terminal pane in RStudio.

4. Clone a Repository with RStudio

Now let’s bring your project into RStudio: This can be found on the GitLab repository page.

First copy the Clone with HTTPS text from GitLab

In RStudio, go to the top menu: File → New Project → Version Control → Git

Enter the Repository URL:

https://git.ecdf.ed.ac.uk/<username>/myproject.git

Choose a directory to clone into (e.g. your home folder or ~/projects)
Click Create Project

RStudio will open the project and show the Git pane in the top-right.

Add screenshot of cloning Git project via RStudio.

5. Make a Change to README.md

In the Files pane, click on README.md to open it.
Add a sentence like: This change was made from RStudio on Noteable.
Save the file (Ctrl + S or File → Save)

6. Commit and Push from RStudio

In the Git pane, you should see README.md listed as modified.
Tick the checkbox next to it to stage the file.
Click Commit. A window appears.
Write a short commit message, e.g. Edit README from Noteable
Click Commit in the dialog box.
Now click Push (also in the Git pane) to upload your changes.

Add screenshot of RStudio commit dialog.

7. Check the Remote Repository

Visit your project page on https://git.ecdf.ed.ac.uk.
Look at the Repository → Files tab to confirm that your changes have appeared.
You can also check the Repository → Commits tab to see your message.

Key Points

Git GUIs offer a visual way to use Git—perfect for beginners and for visualising changes.
RStudio’s Git integration supports cloning, staging, committing, and pushing.
Always configure your name/email before making your first commit.
You can verify success by checking your changes online.

Content from Collaborating

Last updated on 2025-07-01 | Edit this page

Overview

Questions

How do I collaborate with others using Git?
What different models exist for Git collaboration?
What are protected branches, and how do I handle merge conflicts?

Objectives

Describe multiple models of collaboration using Git
Demonstrate how to add collaborators and manage permissions in GitLab
Practice cloning, committing, and pushing to a shared repository
Understand how to resolve common issues like push rejections and merge conflicts

Collaborating with Git

One of Git’s most powerful features is that it makes collaboration straightforward and trackable. When working with others, a shared repository acts as the single source of truth. Contributors clone, modify, and then sync their work using version control commands like pull, commit, and push.

Different Models for Collaboration

There are several ways to collaborate using Git:

Shared repository model: You give collaborators direct access to your repository. This is quick but requires trust.
Fork-and-pull model: A collaborator creates a copy (fork) of your repository, makes changes, and submits a merge request (also called a pull request). This is commonly used in open-source projects. It may not work between two private repositories.

For this exercise, we assume a shared repository trust model. That means you’ll work directly in each other’s repositories.

We’ll now walk through the process of adding a collaborator and working on the same project together.

Step 1: Pair Up and Add a Collaborator

You will work in pairs. First:

Introduce yourselves.
Person 1: Get the UUN (University User Name) of Person 2.

Add Member to Your Repository

Person 1 should add Person 2 as a collaborator on their GitLab repository:

Click Invite members.
Enter Person 2’s UUN.
Set the role to Developer.
Go to the sidebar and click Project → Members.
Confirm the role is set correctly.

Step 2: Unprotect the Branch

In GitLab, branches can be protected to restrict who can push to them. To allow collaborators to push changes, you need to modify this setting:

Go to Settings -> Repository -> Protected Branches.
Find the main branch (or master depending on your setup).
Click Unprotect.

Step 3: Clone the Repository

What if you were given a link to a folder from a remote location that you needed to get on your computer? How would you do that? You’d need to make a copy of the remote repository to your local machine. In the world of Git, this is referred to as “cloning.” The command for cloning is, you guessed it, git clone.

Person 2 now clones the repository on their system (e.g., on Eddie):

BASH

git clone https://git.ecdf.ed.ac.uk/<person1>/myproject.git project-collab
cd project-collab
git remote -v

This creates a local copy of the repository and shows the remote repository settings.

Step 4: Check Who Edited What

Git provides the blame command to show who last modified each line of a file:

BASH

git blame README.md

This is useful when debugging or understanding the origin of changes.

Step 5: Make a Change and Commit

Person 2 can now make a change to the README.md file:

BASH

nano README.md  # or use any editor

After saving the file:

BASH

git add README.md
git commit -m "Update README.md with message from Person 2"

Step 6: Push the Changes

Now attempt to push:

BASH

git push

Rejected?

If you see a “rejected” message, this likely means your local copy is behind the remote. You need to pull the latest changes:

BASH

git pull

Then resolve any conflicts if necessary and try pushing again.

Merge Conflicts

Sometimes two collaborators edit the same part of a file. This creates a merge conflict.

Git will mark the conflict like this:

You must manually edit the file to resolve the conflict, then:

BASH

git add filename
git commit -m "Resolve conflict in filename"
git push

Optional: Cache Your Credentials

If you’re prompted for your credentials too often, you can cache them temporarily:

BASH

git config --global credential.helper 'cache --timeout=3600'

This caches your credentials for one hour.

Key Points

Git allows multiple collaboration models; shared access is fastest but requires trust.
GitLab permissions and protected branches must be configured for collaborators.
Always pull before pushing to avoid rejection.
Merge conflicts are normal and can be resolved with manual editing.

Content from Exploring History

Last updated on 2025-07-01 | Edit this page

Overview

Questions

How can I view the history of changes in a Git repository?
How can I find out what was changed, when, and by whom?
How do I explore history using the command line and RStudio?

Objectives

Use git log to inspect the commit history of a project.
Use git show to examine specific changes within a commit.
Use git diff to compare different versions of files or commits.
View history using RStudio’s Git interface.
Use git restore to revert changes to a file.

Introduction

Git tracks everything. This means you can always go back and see who changed what, when, and why. This history is extremely useful for debugging, collaboration, and documentation.

Let’s look at some tools for exploring that history.

1. Viewing the Commit History (`git log`)

The most basic command to view history is:

BASH

git log

This shows:

The commit hash (a long ID)
Author
Date
Commit message

This gives you a full history of commits, starting from the most recent.

Useful `git log` Options

Shorter Log View: Use --oneline for a more concise view. This is helpful when scanning many commits quickly.
BASH
```
git log --oneline
```
Terminal showing git log –oneline output
Graphical History: To see a visual representation of branches and merges:
BASH
```
git log --graph --oneline --decorate
```
History of a Specific File: To see only the commits that affected a particular file, along with the changes made in each commit:
BASH
```
git log -p README.md
```
Filter by Author: To see commits made by a specific person:
BASH
```
git log --author="Your Name"
```

2. Inspecting a Specific Commit (`git show`)

To see exactly what was changed in a particular commit, use git show followed by the commit ID:

BASH

git show <commit-id>

For example:

BASH

git show a3f2d4e

This command shows the commit message, author, date, and the full diff (changes) introduced in that commit.

If you want to see the content of a specific file at a given revision, you can do:

BASH

git show <commit-id>:<file-path>
# Example: git show HEAD~2:README.md

3. Comparing Changes (`git diff`)

git diff is a powerful command for comparing different versions of your files. It shows you the differences between two points in your repository.

Compare Working Directory vs. Staging Area: Shows changes you’ve made but haven’t yet added to the staging area.
BASH
```
git diff
```
Compare Staging Area vs. Last Commit (HEAD): Shows changes that are staged and ready to be committed.
BASH
```
git diff --staged
```
Compare Working Directory vs. Last Commit (HEAD): Shows all changes since your last commit, whether staged or not.
BASH
```
git diff HEAD
```
Compare Between Two Commits: Shows the differences between any two specific commits.
BASH
```
git diff <commit1-id> <commit2-id>
# Example: git diff abc123 def456
```

Compare a File Between Two Commits: To see changes to a specific file between two commits:

BASH

git diff <commit1-id> <commit2-id> <file-path>
# Example: git diff HEAD~1 HEAD README.md

4. Undoing Changes and Restoring Files (`git restore`)

git restore is used to discard changes in your working directory or to unstage changes. It can also be used to restore a file to a previous state from a commit.

Discard unstaged changes in working directory:
BASH
```
git restore <file-path>
# Example: git restore README.md
```
Be cautious: this removes changes permanently unless they were staged or committed.
Unstage changes (move from staging area back to working directory):
BASH
```
git restore --staged <file-path>
```

Restore a file to a version from a specific commit:

BASH

git restore --source=<commit-id> <file-path>
# Example: git restore --source=HEAD~1 README.md

5. Using RStudio to Explore History (GUI)

RStudio has a Git pane that allows you to explore commit history graphically:

Click on the History button in the Git pane.
Select a commit to see:
- Author and date
- Commit message
- File changes
You can diff individual files by selecting them.

This is a good way to review changes if you prefer a GUI over the command line.

6. Bonus: Who Wrote This Line? (`git blame`)

Git has a powerful blame tool:

BASH

git blame <file-path>
# Example: git blame README.md

This shows you, line by line, who last modified each part of the file, along with the commit ID and timestamp. Very useful for identifying the history of a specific part of the code.

Challenges

Challenge 1: What Changed?

Open a repository (your project or a partner’s). Then:

Run git log --oneline and pick an older commit.
Use git show to see what was changed in that commit.
Identify:
- Who made the change?
- What file(s) were edited?
- What was added or removed?

Show me the solution

bash git log --oneline
bash git show <commit-id>
Look for:
- Author and date near the top
- File names and the actual line changes below

Challenge 2: The Archaeologist

Your project’s README.md has changed many times. Your task is to find the very first version of it.

Use git log to find the commit hash for the initial commit of the repository.
Use git show to display the contents of README.md as it existed in that first commit.

Hint: You can combine the commit hash and the filename in the git show command.

Show me the solution

First, find the last commit in the log: bash git log --oneline Scroll to the bottom of the output to find the very first commit and copy its hash (e.g., 72041c0).
Then, show the file from that commit: bash git show 72041c0:README.md

Challenge 3: Who Did What?

You’re curious about the changes your collaborator made.

Use git log to find all the commits made by your collaborator in the project.
Pick one of their commits and use git show to see exactly what they changed.

Show me the solution

Filter the log by author: bash git log --author="Collaborator's Name"
Copy a commit hash from the output and inspect it: bash git show <hash>

Challenge 4: Revert a Single Mistake (Safely)

Imagine you accidentally deleted a section from README.md in your last commit. You want to get it back without undoing all the other good changes in that commit.

Use git diff to compare your current README.md with the version from the commit before (HEAD~1). This will show you the lines that were deleted.
Manually copy the deleted lines from the diff output and paste them back into your README.md file.
Stage and commit this fix.

This is a common and safe way to selectively recover code without using more complex Git commands.

Show me the solution

See what was changed in the last commit: bash git diff HEAD~1 HEAD README.md
Open README.md in your editor, and re-insert the lines that are marked with - in the diff output.
Commit the fix: bash git add README.md git commit -m "Fix: Restore deleted section in README"

Key Points

git log is used to inspect the commit history, with options for concise, graphical, or filtered views.
git show displays the details and changes of a specific commit or the content of a file at a past revision.
git diff compares changes between the working directory, staging area, and different commits.
git restore can discard unstaged changes, unstage changes, or restore files from previous commits.
RStudio provides a graphical interface for exploring Git history.
git blame helps identify who last modified each line of a file.

Content from Ignoring Things

Last updated on 2025-07-01 | Edit this page

Overview

Questions

What is a .gitignore file?
Why should we use it?
How do we create and manage it?

Objectives

Explain the purpose of a .gitignore file in Git repositories
Create and edit a .gitignore file to exclude unnecessary files
Understand common patterns and pitfalls when using .gitignore

What is `.gitignore`?

When using Git, you often have files that you don’t want to track. These could be:

Temporary files created by your text editor or IDE
Output files from running your code
Large data files or binary files
Configuration files specific to your machine

Git provides a file named .gitignore where you can list patterns that match files or directories Git should ignore.

Why Use `.gitignore`?

If you don’t ignore unnecessary files:

Your repository becomes cluttered
You may accidentally share sensitive or large files
Your collaborators may run into issues syncing or running code

Common Examples

Here are some typical entries in an R project’s .gitignore file:

.Rhistory
.RData
.Rproj.user/
*.csv
*.xlsx
data/

.Rhistory, .RData: Temporary R session files
*.csv, *.xlsx: Data files you don’t want versioned
data/: An entire directory

How to Create and Use `.gitignore`

You can create the file manually:

BASH

touch .gitignore

And then edit it:

BASH

nano .gitignore

Or use RStudio’s Git pane: It often shows ignored files in grey.

Does It Remove Already-Tracked Files?

No. .gitignore only affects new files. If you’ve already added a file to Git, .gitignore won’t stop it from being tracked. To remove a file already tracked:

BASH

git rm --cached filename

Then add it to .gitignore.

Challenge: Ignore and Track

Challenge

Create a file called secret.txt and add some text to it.
Add it to your .gitignore.
Try running git status — is it listed?
Add and commit your .gitignore file. :::

Show me the solution

BASH

echo "my password" > secret.txt
echo "secret.txt" >> .gitignore
git status   # secret.txt should not appear under "Untracked files"
git add .gitignore
git commit -m "Add gitignore to exclude secret.txt"

Advanced Tip: Ignore Locally Only

If you want to ignore files only on your machine (not share with others), you can use:

BASH

.git/info/exclude

This works like .gitignore, but it’s not committed to the repository.

Key Points

Use .gitignore to prevent tracking of unnecessary or sensitive files
Edit .gitignore early in your project to keep your history clean
Use .git/info/exclude for machine-specific ignores
Files already tracked by Git won’t be ignored retroactively

Overview

Questions

Objectives

Introduction

The Git Workflow

Challenge

Show me the solution

Key Points

Overview

Questions

Objectives

Introduction

1. Identify yourself

BASH

Callout

Challenge 1: Check your work

Show me the solution

2. Make output readable

BASH

Example Configuration for Red-Green Colorblindness (Deuteranopia/Protanopia)

BASH

3. Choose your editor

BASH

4. Tame autocorrect and pulls

BASH

Challenge 2: Inspect your .gitconfig

Show me the solution

5. Override settings per‑project

BASH

Challenge 3: Predict the result

Show me the solution

Key commands reference

BASH

Key Points

Overview

Questions

Objectives

Introduction

1. Create a repository

BASH

BASH

BASH

Challenge 1: First contact

Show me the solution

2. Add a README file

Callout

BASH

OUTPUT

Git add

BASH

BASH

OUTPUT

3. Commit the snapshot

Git messages

BASH

OUTPUT

BASH

OUTPUT

Git Log: Tracing Your Project’s History

BASH

OUTPUT

Challenge 2: Where is my commit?

Show me the solution

4. Modifying a file

BASH

BASH

OUTPUT

Viewing changes

BASH

OUTPUT

What Each Part Means

diff --git a/README.md b/README.md

index a4c6c69..603f621 100644

➖ --- a/README.md

➕ +++ b/README.md

@@ -1 +1,4 @@

Content Change Section

DIFF

Stage and commit the update:

BASH

Challenge 2: Inspect your `.gitconfig`

`diff --git a/README.md b/README.md`

`index a4c6c69..603f621 100644`

➖ `--- a/README.md`

➕ `+++ b/README.md`

`@@ -1 +1,4 @@`
